For HITECH 5.7inch PWS5610T-S 320x240 Mono STD LCD Touch Screen

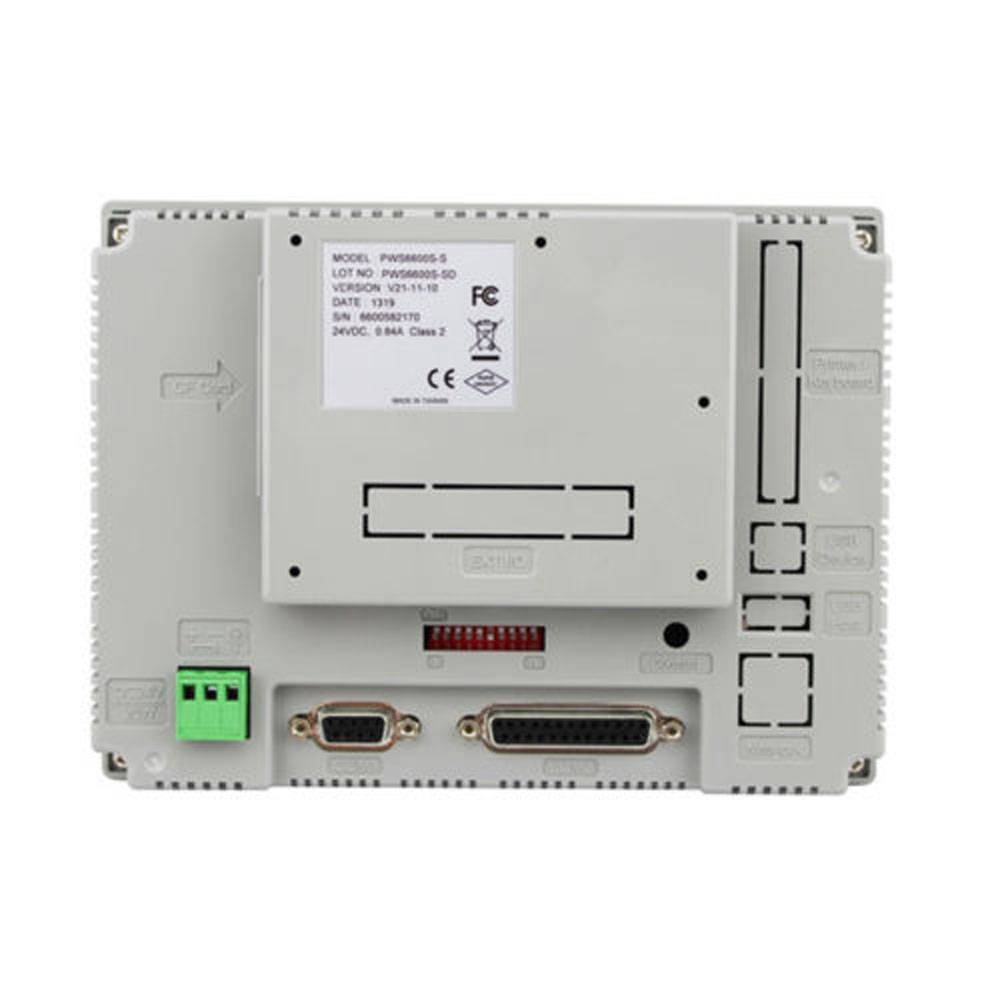

Model : PWS6600S-S
Display Type: Mono STN LCD
Display Color :16 shades of blue
Display Size : 5.7inch (diagonal); display area is 117.2 X 88.4mm
Number of Pixels : 320x240; Number of 8x8 characters displayable is 40x30.
Display Adjustment : Via touch panel & VR on the back
Back Light : CCFT; Lifetime 50,000 hours @25°C
Touch Screen : Analog
Keypad : 1 'Menu' key and 5 user-defined Function keys (F1 ... F5)
Keypad : Pressure & Lifetime 350 + / - 50gf operating force, Lifetime is over 1 million activations.
Input Power : 24VDC + / - 15% ; less than 20W
Flash ROM : 4M bytes
RAM : 512 K bytes
CPU : 32 bits RISC
Battery Backed Memory : 512 K bytes
RTC :Yes (w/Replaceable Lithium Battery)
Notice: When using the machine for the first time, please remember to reset RTC.
COM1 :9-pin female connector: RS232/RS485
COM2 : 25-pin female connector: RS232/RS422/RS485
Multi-functional Port
Front Panel Seal : IP65
Ambient Temperature: 0~50°C
Storage Temperature :-10~60°C
Ambient Humidity :10-90%RH(0~40°C),10-60%RH(41-50°C),non-condensing
Vibration Endurance :0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions
Shock Endurance : 10G, 11ms three times in each direction of X, Y, and Z axes
CE EN61000-6-4,EN61000-6-2
External Dimensions (mm) : 195(W) x 145(H) x 59.1(D)
Cut-out Dimensions (mm) : 185.8 x 135.8
Weight : 0.81 Kg
Cooling : Natural cooling

Package included
1 x PWS6600S-S HMI touch screen
1 x Programming cable(The communication cable is not included, if you need, please contact us and inquiry it)
